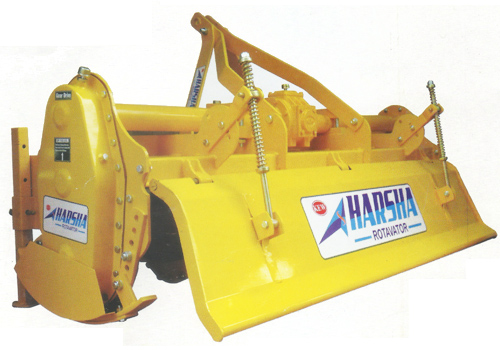

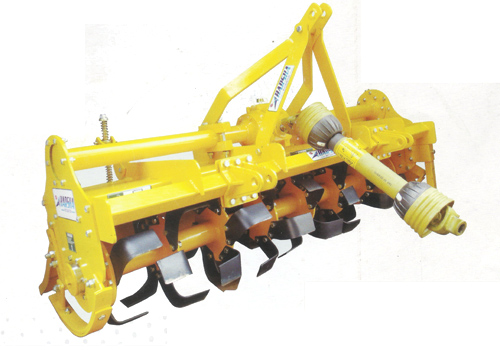

RK MARK AGROS “HARSHA” Rotavator is a rotary tillage, tractor operated implement attached to a three point linkage of the tractor and are driven by PTO (Power take off) which cuts, pulverizes, mixes and level the soil in a single pass, and can be most economically and effectively be used by replacing 1 Tine Tiller, 2 Disc harrow, 3 Puddler and 4 Levelers. It works on the soil by means of rotating blades.

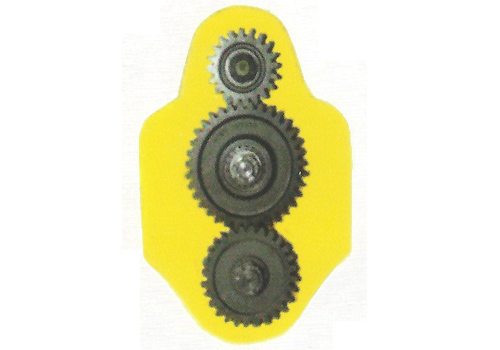

It consists of heavy main frame, gearbox assembly with input and output shaft, gears, rotor with flange, rotary tynes (highly hardened blades), adjustable trailing board, sealed bearings, adjustable depth control skid, P.T.O. shaft with shear bolt for overload protection and with three point linkage.
Particulars | RK MARK AGROS SSGD 5 - 36 | RK MARK AGROS MSGD 5 - 36 | RK MARK AGROS SSGD 6 - 42 | RK MARK AGROS MSGD 6 - 42 |
Tractor Power | 35 – 45 HP | 35 – 45 HP | 42 – 55 HP | 35 – 45 HP |
Overall Width | 177 cm | 177 cm | 203 cm | 203 cm |
Tillage Width | 150 cm | 150 cm | 180 cm | 180 cm |
Gear Box | Single Speed | Multi Speed | Single Speed | Multi Speed |
Side Transmission | Gear | Gear | Gear | Gear |
PTO Speed (RPM) | 540 | 1000 | 540 | 1000 |
Rotor Speed (RPM) | 220 | 220 | 220 | 220 |
No. of Blades | 36 | 36 | 42 | 42 |
Gear Box Overload Safety | Shear Bolt | Shear Bolt | Shear Bolt | Shear Bolt |
Weight (Approximate) | 386 Kg | 418 Kg | 431 Kg | 452 Kg |
