RK MARK AGROS make Automatic Laser Guided Land Leveler is suitable to level the agricultural land accurately (Table-Top Leveling, Slope Setting any side) as according to our needs of cultivation. A significant (25 - 30%) amount of irrigation water is saved due to this type of farming and evenness of the field.

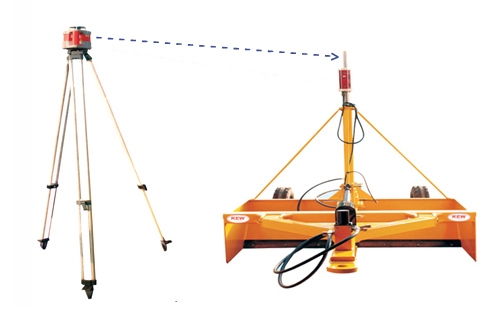

The unit consists of laser transmitter, laser receiver, survey receiver, control box, twin hydraulic control system, tripod & scale, remote and bucket scraper.
The laser transmitter transmits a rotating laser beam, which is used as the reference datum by the laser receiver mounted on the leveling bucket.
The control panel mounted on the tractor interprets the signal from the receiver and opens or closes the hydraulic control valve, which raises or lowers the bucket for making the required soil to be shifted from the high points of the field to the low points in the most cost effective way.
Field need to be ploughed and a topographic survey had to be undertaken before leveling commences.
Power requirement | 45 HP above Tractor |
---|
